Crow's Foot Notation

Crow’s Foot Notation Guide

Crow’s Foot notation (also known as IE notation) is a widely-used data modeling notation that uses graphical symbols to represent entities, attributes, and relationships in Entity-Relationship Diagrams (ERDs). The most recognizable characteristic of Crow’s Foot notation is the three-pronged “many” symbol, which is how this notation style got its name.

History of Crow’s Foot Notation

Crow’s Foot notation dates back to an article by Gordon Everest in 1976 (Fifth Computing Conference, IEEE). Originally called the “inverted arrow” to distinguish it from Bachman’s notation, it was designed to avoid implying directionality or a physical access path while being visually intuitive in showing “manyness.”

As Mr. Everest explained:

I preferred it to the arrow because it did not imply directionality or a physical access path, and it was visually intuitive, showing manyness. Others then started referring to it as chicken feet. I now prefer to call it a FORK, which is short and to the point.

The notation can be represented in a standard character set as:

[ X ]——<[ Y ]

This shows that an individual X can relate to multiple Ys (and each Y relates to at most one X).

Entities

Definition

An entity is a representation of a class of object. It can be a person, place, thing, or concept. Entities usually have attributes that describe them.

Representation

In Crow’s Foot notation, an entity is represented by a rectangle, with its name on the top. The name is singular (entity) rather than plural (entities).

Attributes

An attribute is a property that describes a particular entity. Attributes are listed inside the entity rectangle.

The attribute(s) that uniquely distinguishes an instance of the entity is the identifier. Usually, this type of attribute is marked with an asterisk (*).

Relationships

Definition

Relationships illustrate the association between two entities. They are presented as a straight line. Usually, each relationship has a name, expressed as a verb, written on the relationship line. This describes what kind of relationship connects the objects.

Note that Crow’s Foot notation typically represents binary relationships (between two entities). In the Entity-Relationship model, representing ternary or higher order relationships can be problematic.

Cardinality

Relationships have two indicators shown on both sides of the line:

1. Multiplicity (Maximum)

The first indicator (often called multiplicity) refers to the maximum number of times that an instance of one entity can be associated with instances in the related entity. It can be one or many.

• Multiplicity of one: Represented by a straight line perpendicular to the relationship line
• Multiplicity of many: Represented by the three-pronged “crow’s foot” symbol

2. Optionality (Minimum)

The second indicator describes the minimum number of times one instance can be related to others. It can be zero or one, and accordingly describes the relationship as optional or mandatory.

• Mandatory relationship: Represented by a straight line perpendicular to the relationship line
• Optional relationship: Represented by an empty circle

Symbol Placement

The combination of these two indicators is always in a specific order. Placed on the outside edge of the relationship:

1. Multiplicity symbol comes first (one line or crow’s foot)
2. Optionality symbol comes after (mandatory line or optional circle)

Relationship Types

There are four possible combinations at each end of a relationship:

Zero or Many (Optional Many)

• Empty circle + Crow’s foot
• Represents: 0 to many instances

One or Many (Mandatory Many)

• Straight line + Crow’s foot
• Represents: 1 to many instances (at least one required)

One and Only One (Mandatory One)

• Straight line + Straight line
• Represents: Exactly one instance (required)

Zero or One (Optional One)

• Empty circle + Straight line
• Represents: 0 or 1 instance (optional)

Relationship Degrees

These combinations make relationships readable as:

• One-to-one: Each entity instance relates to exactly one instance of the other entity
• One-to-many: One entity instance relates to many instances of the other entity
• Many-to-many: Many instances of one entity relate to many instances of the other entity

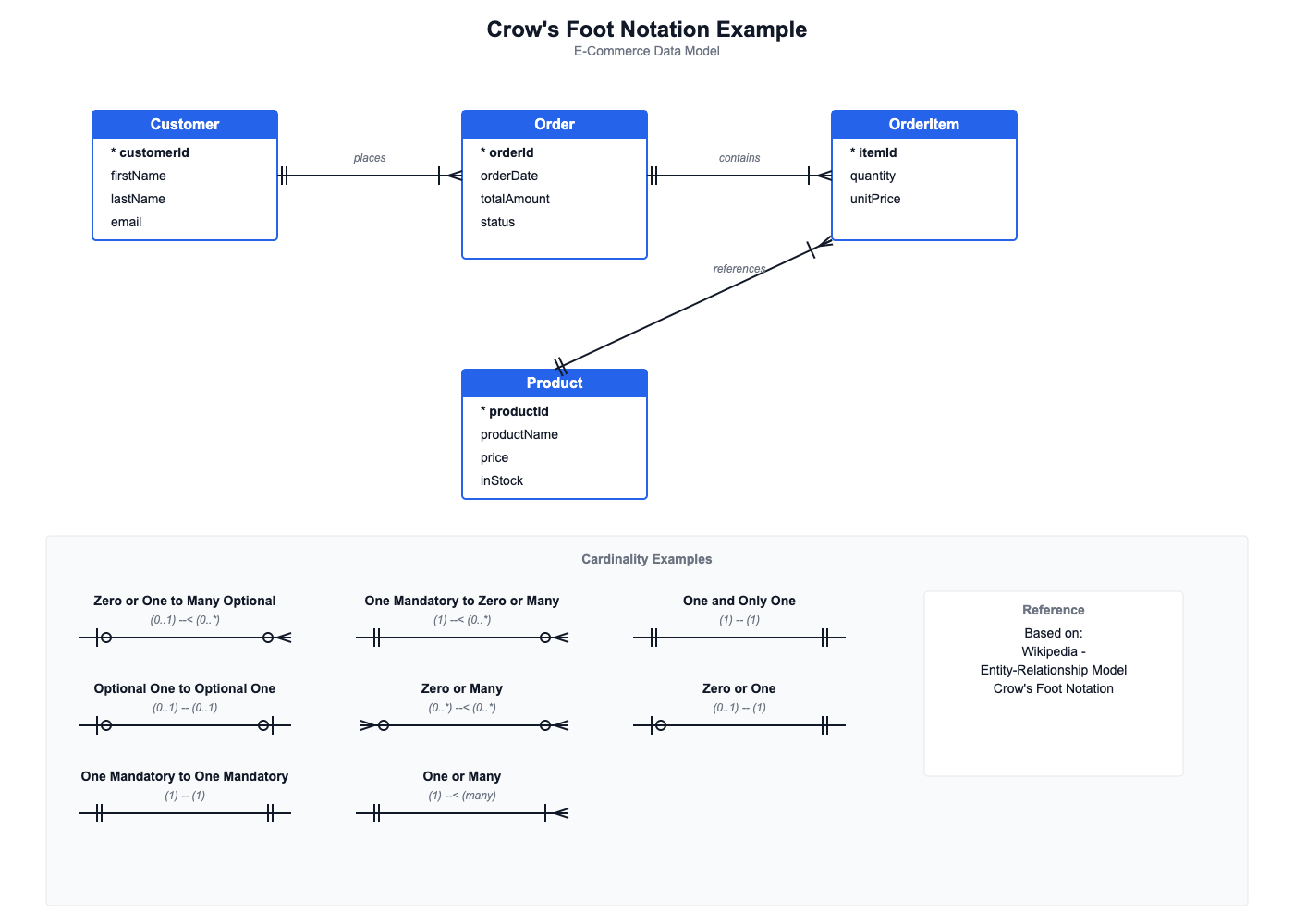

Example: E-Commerce Data Model

Entities

• Customer: Represents customers who place orders
• Order: Represents customer orders
• OrderItem: Represents individual items within an order
• Product: Represents products available for purchase

Relationships

• Customer to Order: One-to-many (one customer can have many orders, each order belongs to one customer)
• Order to OrderItem: One-to-many (one order contains many items, each item belongs to one order)
• Product to OrderItem: One-to-many (one product can appear in many order items, each order item references one product)

Using Crow’s Foot Notation in Data Modeling

Creating Entity-Relationship Diagrams

When creating ERDs using Crow’s Foot notation:

1. Identify Entities: Determine the main objects or concepts in your system
2. Define Attributes: List the properties that describe each entity
3. Identify Relationships: Determine how entities relate to each other
4. Specify Cardinality: For each relationship, determine:
   • Maximum multiplicity (one or many)
   • Minimum optionality (zero or one)
5. Draw the Diagram: Use rectangles for entities, lines for relationships, and Crow’s Foot symbols for cardinality

Best Practices

• Use singular names for entities (Customer, not Customers)
• Mark identifiers (primary keys) with an asterisk (*)
• Use descriptive relationship names (verbs) on relationship lines
• Keep diagrams readable by avoiding crossing lines where possible
• Document complex relationships with notes if needed

Crow’s Foot vs. Other Notations

Crow’s Foot notation is one of several ERD notations. Others include:

• Chen notation: Uses diamonds for relationships
• UML notation: Object-oriented modeling notation
• Barker notation: Another popular ERD notation
• Arrow notation: Uses arrows to show relationships
• IDEF1X notation: Integration Definition for Information Modeling

Crow’s Foot notation is particularly popular because:

• It’s visually intuitive (the crow’s foot clearly shows “many”)
• It doesn’t imply directionality (unlike arrow notation)
• It’s widely supported by database modeling tools
• It’s easy to read and understand

Converting Crow’s Foot Diagrams to Data Contracts

In Open Data Modelling, Crow’s Foot ERD diagrams can be converted to data contracts:

1. Entities become contract schemas
2. Attributes become schema fields
3. Relationships become references or nested structures
4. Cardinality informs validation rules and constraints

Example Conversion

Crow’s Foot ERD:

• Customer entity with attributes: id*, name, email
• Order entity with attributes: id*, customerId, date, total
• Relationship: Customer (1) ——< (many) Order

Data Contract:

{
  "customer": {
    "id": "string",
    "name": "string",
    "email": "string"
  },
  "order": {
    "id": "string",
    "customerId": "string",
    "date": "date",
    "total": "number"
  }
}
